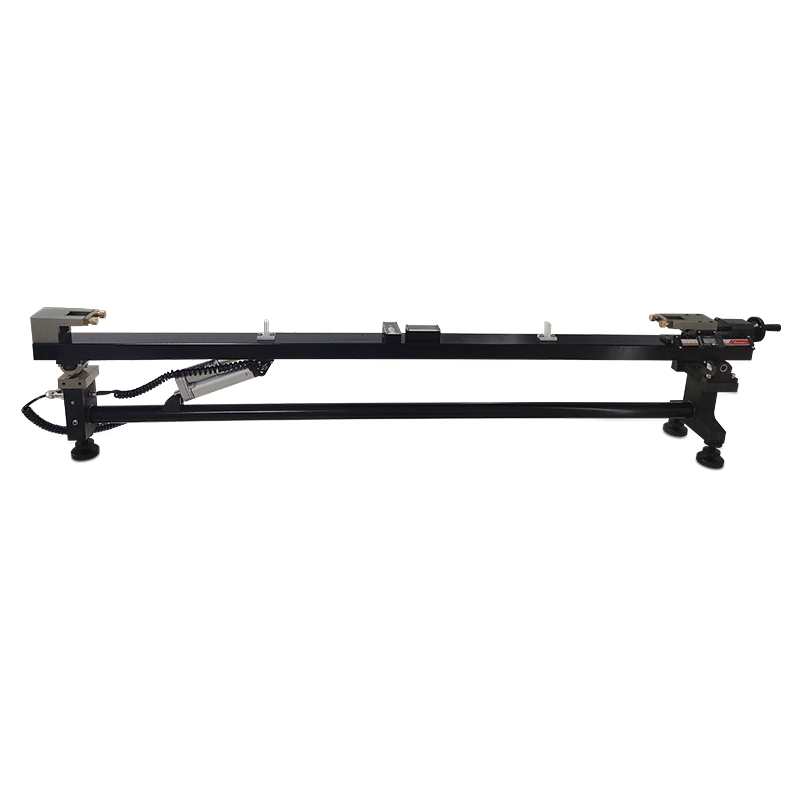

Calibrator For Railway Track Gauge(Sin Principle)
1.High accuracy 2.Easy to operate 3.Portable
PRODUCT DESCRIPTION
The calibrator is a railway measuring instrument that used to calibrate the 1435mm track gauge, the guard rail check gauge, the guard rail face gauge and the super-elevation.
BENEFITS
The calibrator can calibrate the digital track gauge with high accuracy,and easy to operate.
TECHNICAL DATA
Model | Calibration | Measurement range | Max error |
LJ-JDQ-I | Track gauge | 1410~1470 | Zero position ±0.04 |
Nonzero position ±0.06 | |||
Super elevation | Super elevation special gauge part 30mm、60mm、120mm、180mm Use according to the measured value | ±0.06 |
APPLICATION

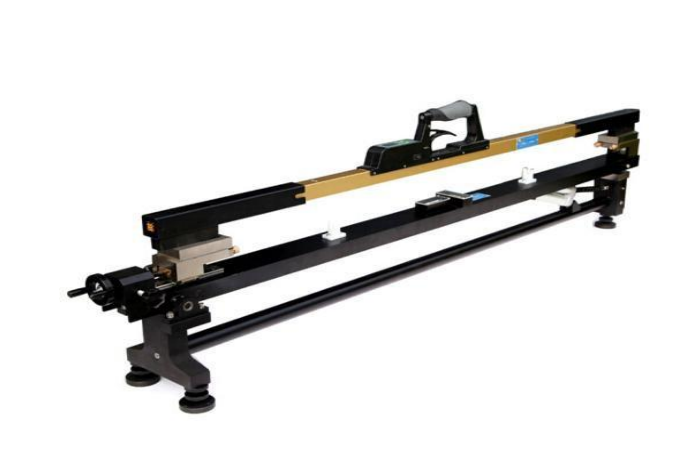

Calibrator for digital track gauge
