1520mm Digital Track Gauge

1.High Accuracy & long Stability 2.Insulation 3.Temperature Compensation

Share

PRODUCT DESCRIPTION

Digital Track Gauge is a special digital design railway measurement instrument. It is used for measuring the track gauge, check rail gauge, back to back distance, Cant (superelevation) and flangeway clearance.


BENEFITS

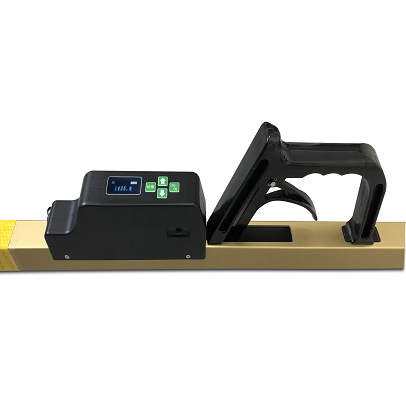

The measured values are clearly displayed on a large OLED display . Night-time and tunnel work ,legible even in direct sunlight are supported . All datas can be in one view in real-time . The speical display design can be flipped to show the inverse image ,this allow to work by right hand as well as left one.



The strong temperature compensation function eliminates the influence of temperature expansion and cold contraction on the measured valuesaccuracy.This guarantees the device can work normally at -30~+55 degrees. GJC-TJG Series also obtain CE Certification and CRCC Approval.



1. Quick calibration operation: simple measurement process

2. Automatic reading function

3. Bluetooth data transmission and MessApp software function (optional)

4. Accurate digital measurement: maintain long-term stability

5. Temperature compensation: working temperature is -30~+55

6. Insulation design

7. Anti-electromagnetic interference

8. Power saving: if there is no operation within 15 minutes, the system will automatically shut down

9. Large capacity battery: longer standby time

10. Large OLED display: suitable for day and night

11. Waterproof: can be used in rainy days


TECHNICAL DATA

Model
GJC-TJG1520
Track gauge(mm)1465-1555
Check rail gauge(mm)1445-1535
Back-to-back gauge(mm)1425-1515
Superelevation (cant) (mm)±200
Flangeway (mm)20-107
Track gauge accuracy(mm)±0.25
Cant accuracy(mm)±0.45


APPLICATION

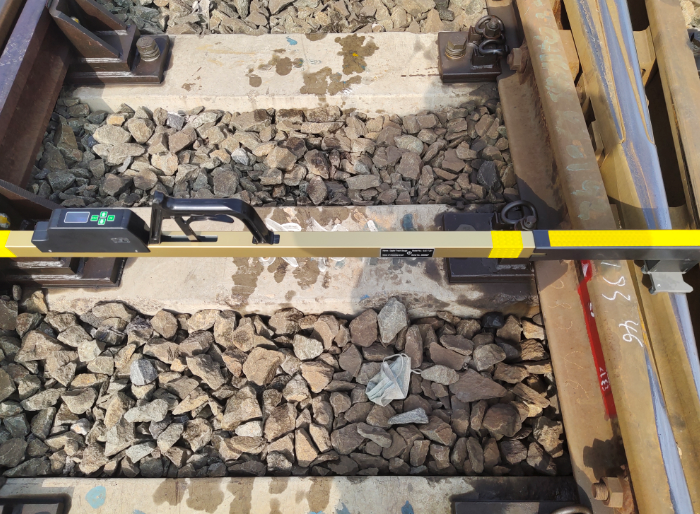

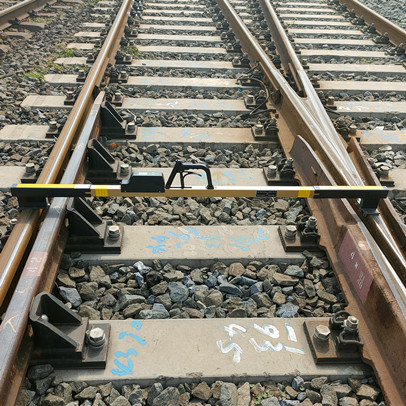

The digital track gauge design for track construction, track rebuild, track inspection ,track maintenance work. measures the following parameters:

Track gauge

Super-elevation(cant)

Check rail gauge

Back to back distance

Flangeway clearance
