1435mm Digital Track Gauge
1.High Accuracy & long Stability 2.Insulation 3.Temperature Compensation
PRODUCT DESCRIPTION
Digital Track Gauge is a special design for global market. It is used for measuring the track gauge, check rail gauge, back to back distance, Cant(super-elevation) and flangeway clearance.
BENEFITS

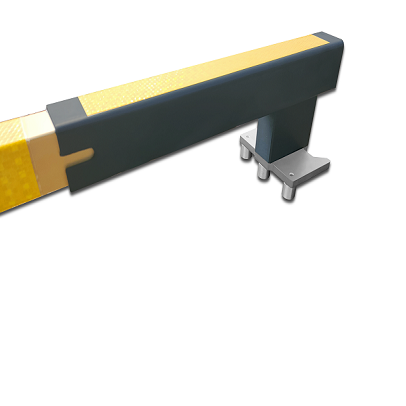

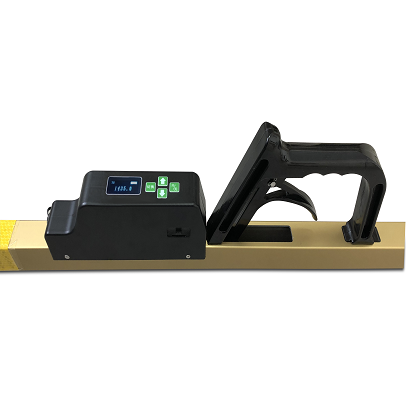

The measured values are clearly displayed on a large OLED display . Night-time and tunnel work ,legible even in direct sunlight are supported . All datas can be in one view in real-time . The speical display design can be flipped to show the inverse image ,this allow to work by right hand as well as left one.
The strong temperature compensation function eliminates the influence of temperature expansion and cold contraction on the measured values’accuracy.This guarantees the device can work normally at -30~+55 degrees. GJC-TJG Series also obtain CE Certification and CRCC Approval.
TECHNICAL DATA
Unit:mm
Model | GJC-TJG0 | CJC-TJG1 |
Track gauge | 1384-1470 | 1384-1470 |
Check rail gauge | 1364-1450 | 1364-1450 |
Back to back distance | 1344-1430 | 1344-1430 |
Super-elevation range | ±200 | ±200 |
Flangeway clearance | 20-107 | 20-107 |
Super-elevation resolution | 0.05 | 0.1 |
Track gauge resolution | 0.01 | 0.1 |
Track gauge uncertainty | ±0.25 | ±0.25 |
Super-elevation uncertainty | ±0.3 | ±0.45 |
Aluminum package box | Option |

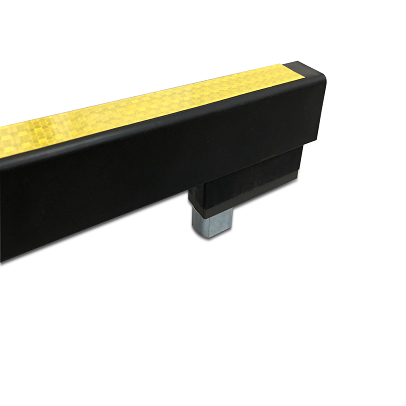

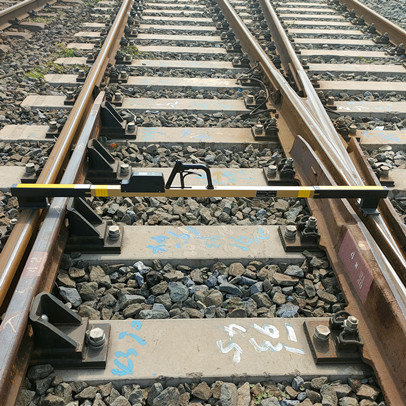

APPLICATION
The digital track gauge measures the following parameters:
Track gauge
Super-elevation(cant)
Check rail gauge
Back to back distance
Flangeway clearance
