Home>>Products>>Rail Wear Gauge>>Frog Vertical Wear Gauge

Frog Vertical Wear Gauge

1.Universal 2.Multifunctional 3.Easy operate

Share

PRODUCT DESCRIPTION

Frog vertical wear gauge is used to measure vertical wear value of frog point rail and wing rail at any sections.Also could be used for measuring decrease value of point rail relative to wing rail.


BENEFITS

Frog vertical wear gauge has the advantages of high measuring accuracy,easy to operate,high reliability,small volume,light weight etc.


TECHNICAL DATA

Model

LJ-CZM

Type

Digital

Measure range

0-40mm

Main ruler scale

0mm-380mm

Score value

0.01mm

Accuracy

1mm

Working temperature

-10°C-+40°C

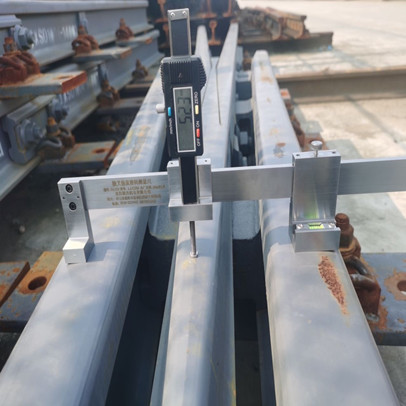

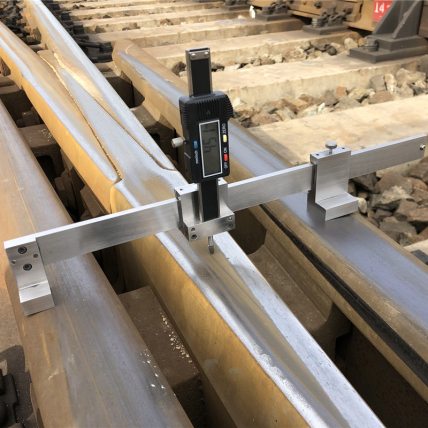

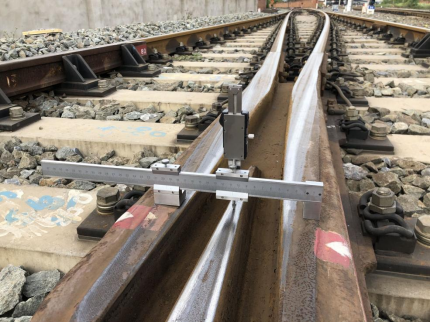

APPLICATION

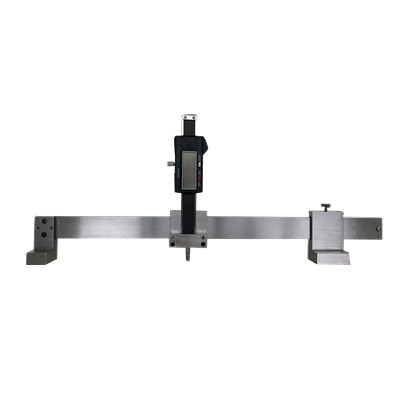

Front of frog vertical wear gauge

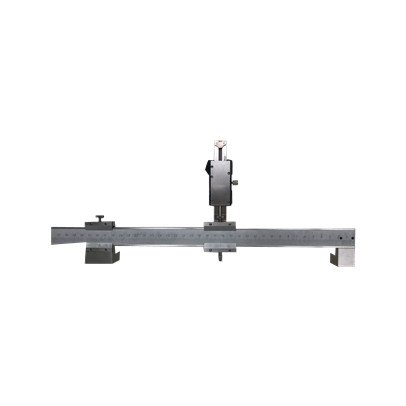

Back of frog vertical wear gauge
