Home>>Products>>Other Railway Inspection Devices

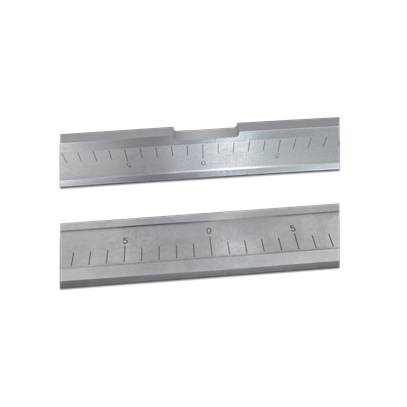

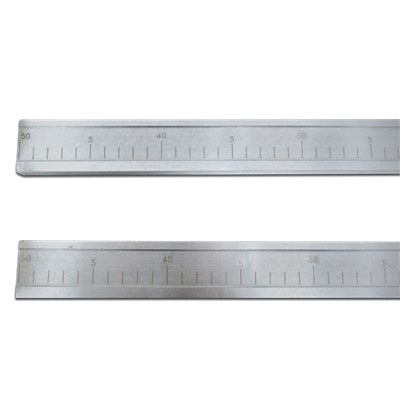

1 Meter Rail Straight Edge Ruler

1. High hardness 2. Wearproof 3. Sepcial design

Share

PRODUCT DESCRIPTION

This item is used to check track rail from any deflections before and after welding.


BENEFITS

1.The ruler body is made of high-quality carbon steel or stainless steel, and the scoring adopts laser scoring technology.

2.The cutting line is made of laser cutting process

3.The Straightness Measurer railway ruler is used to measure the railway rail flatness and wear.

4.Material: carbon steel


TECHNICAL DATA

Model

LJ-PC-1000

measuring range

0-1000mm
Measuring surface accuracy≤0.04
Material of straight steel rail rulercarbon steel

Weight

2.6kg


APPLICATION

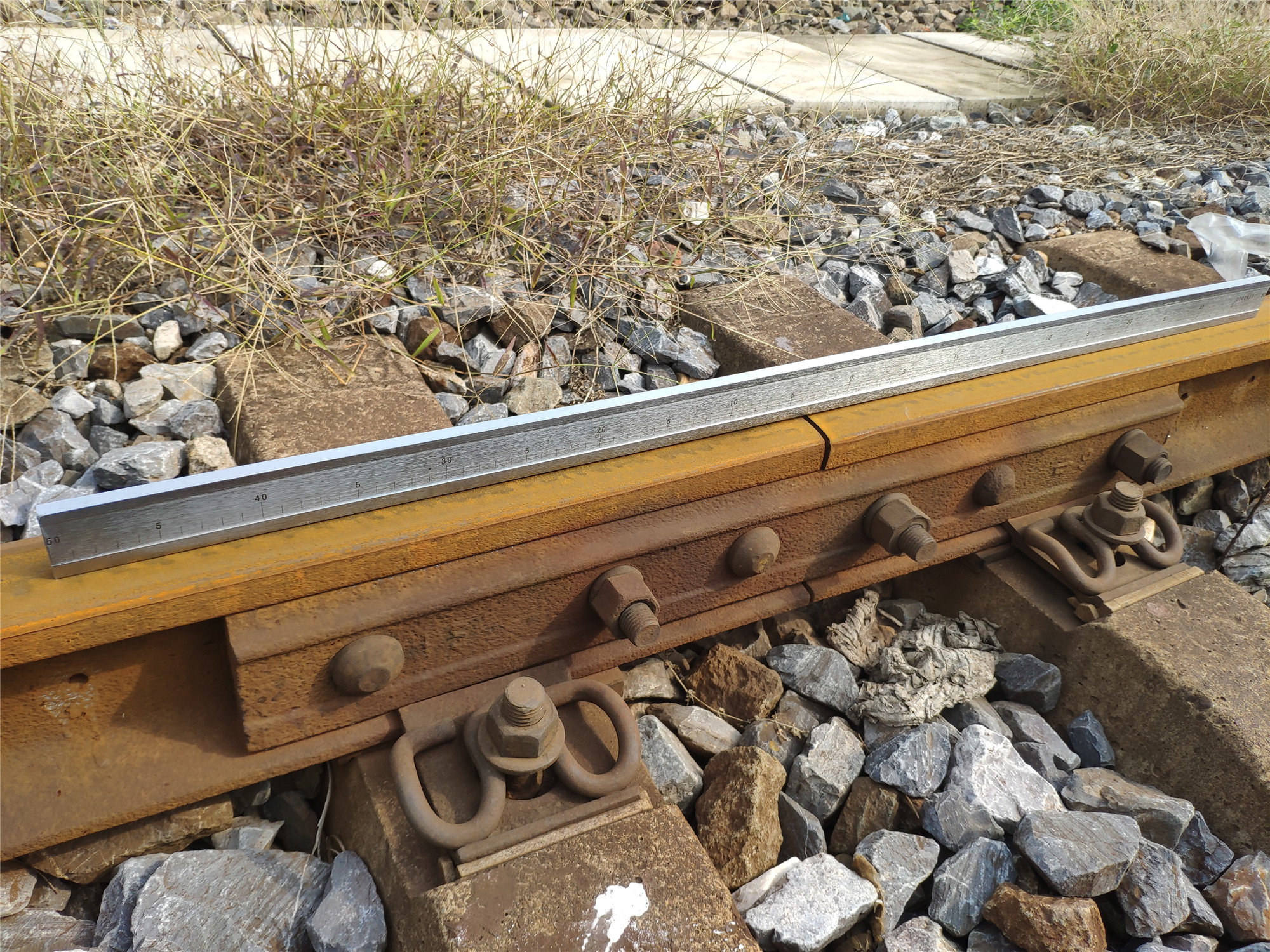

Rail straight ruler used for measuring rail weld

straight edge_副本.jpg
