L-shaped Track Ruler

1.Simple structure 2.High Accuracy 3.Customizable

Share

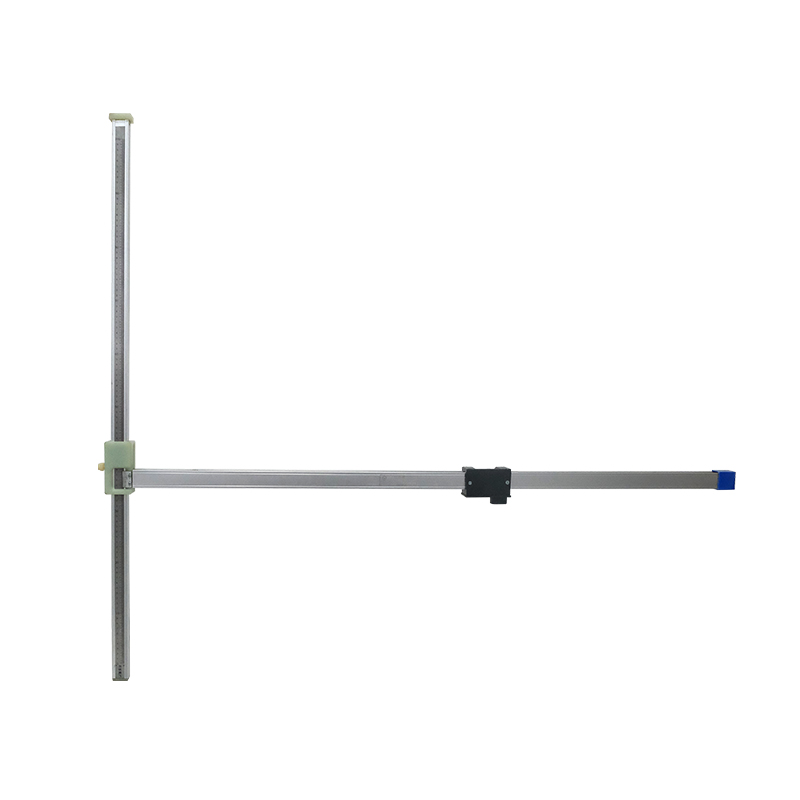

L-shaped Track Ruler

L-shaped track ruler(right-angle track) is a special measuring tool used for measuring the distance between the inner side of railway track and the base mark and the height between the plane on the rail and the base mark.

BENEFITS

L-shaped Track Ruler has the advantages of simple structure,high accuracy and customizable.


TECHNICAL DATA

unit(mm)

Model

LJ-L-I

Horizontal measurement range

(distance between the inner side of rail and  base mark )

different sizes:

100-1000,

100-1200,

100-1500,

100-2000

Height measurement  range

 (distance between the plane on the rail and the base mark.)

different sizes:

100-1000,

100-1500,

100-2000

Accuracy

±1

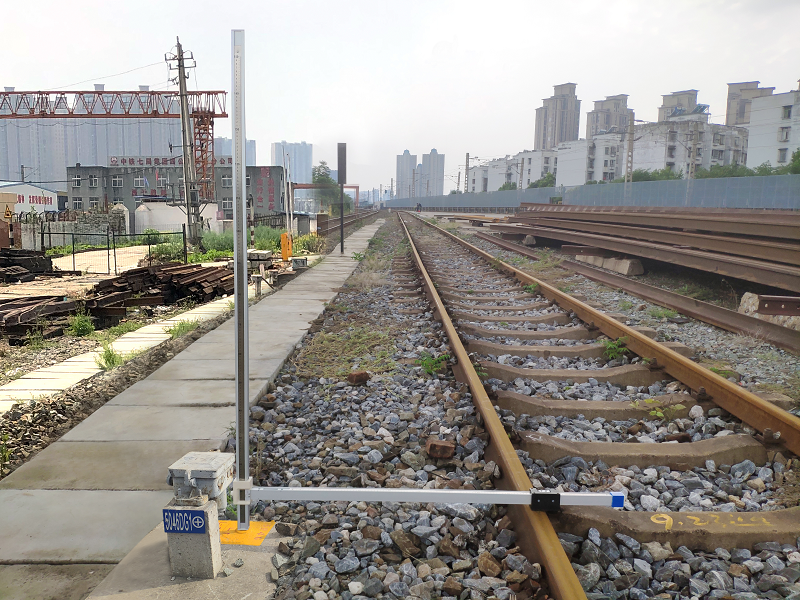

APPLICATION
