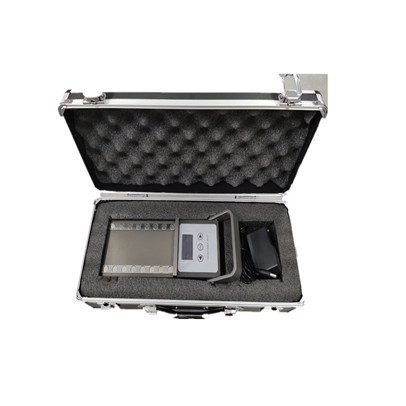

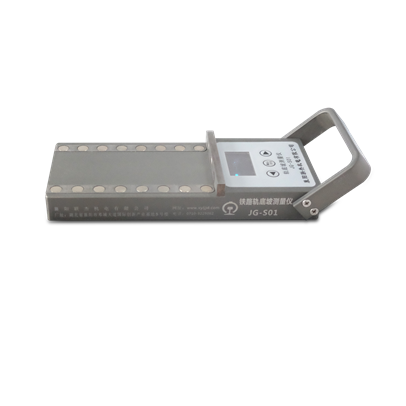

Rail Cant Measurement Device

1. Small structure 2. High accuracy 3. Easy operate

Share

PRODUCT DESCRIPTION

The main part of the wheel tread is an  inward inclination of 1:40 .  In order to make the top of the rail track under the wheel load with cone tread stressed uniformly ,decrease load offset, reduce rail web stress , avoid slit between rail head and rail web, the railway track shall not be laid upright for straight line, it shall be inward inclined ,this inward inclination of rail called Rail Cant, it is a high precision ,portable , numeric rail geometrical testing tool.


BENEFITS

1.Stable performance ,protect electromagnetic interference .

2.One piece structure design ,light and handy ;

3.magnetic self-absorption function ;

4.Data display is clear and intuitive

5.The function of temperature of environmental temperature factors on the measurement data

6.Power saving function :The system will shutdown automatically if there is no operation in 5 minutes .


TECHNICAL DATA

ModelJG-SO1
Power Supply ModeBuilt-in lithium battery charging
Operating Temperature-30°+60°
Measuring Range±110 ±1200
Operating Current40mA
Size225*90*60mm


APPLICATION

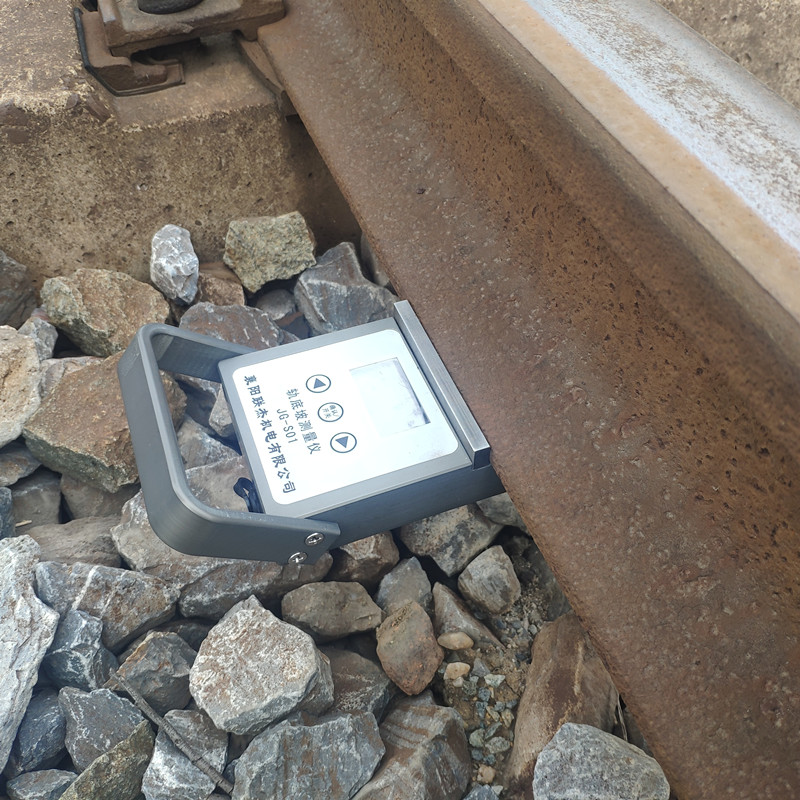

Rail cant measure device for measuring rail botton inclination

rail cant gauge_副本.jpg
