Rail Web Width Measuring Gauge
1.High measuring accuracy 2.LCD digital display 3.Metric /Imperial unit 4.Customized
PRODUCT DESCRIPTION
Rail Web Width Measuring Device is a kind of measuring instrument for measuring the rail web width.
BENEFITS
Using NdFeB strong magnet positioning , accurate positioning , high repeatability of measurement;
LCD digital display, easy to reading , with accurate and reliable measurement;
The positioning block can be customized according to the rail type ;
Different rail types can be measured by changing the positioning block
TECHNICAL DATA
| Model | Measure range (mm) | Accuracy (mm) | Repeatability of indication value (mm) |
| LJ-GK-A | 0-120 | 0.01 | 0.05 |
APPLICATION

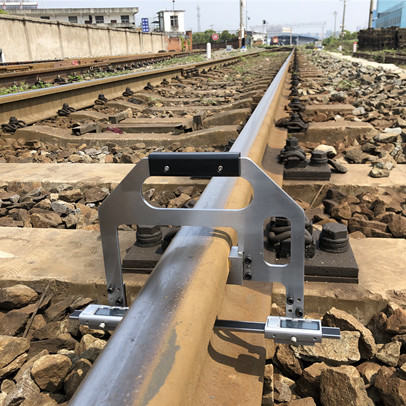

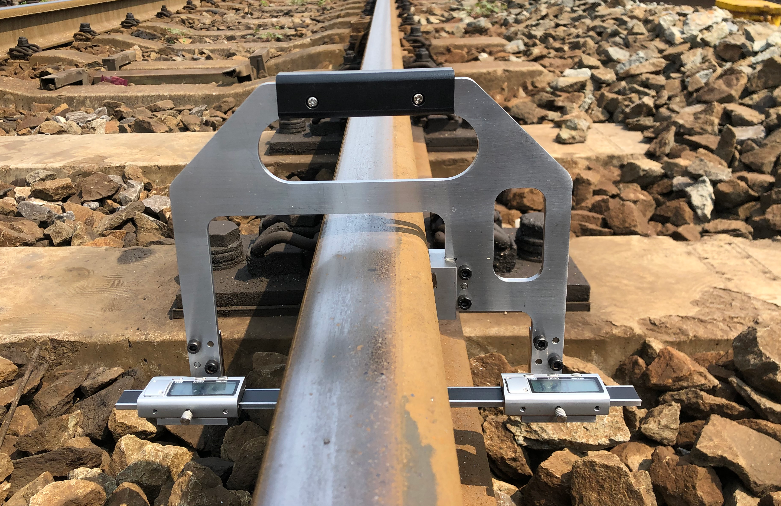

Measuring the rail web width:
