Lithium Battery Bolt Wrench Machine

1.Multifunctional 2. Environmental protection 3. Light weight to carry

Share

PRODUCT DESCRIPTION

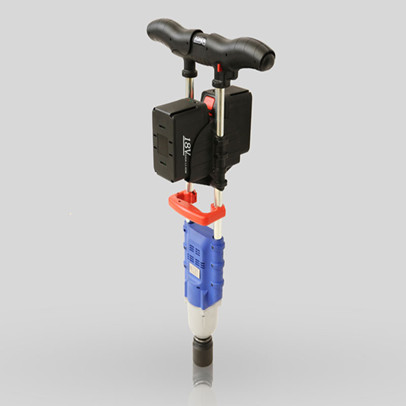

LLB-500 lithium battery bolt wrench machine is a new product developed by, our company in accordance with international requirements for environmental protection. Using lithium battery as energy source, low-voltage and high-current DC motor as power, it has the characteristics of small size and high power. It is suitable for the tightening operation of ordinary sleeper vertical bolts, turnout sleeper vertical bolts, and high-speed railway sleeper plate vertical bolts. Design and insall bolt torque display mechanism and torque adjustment mechanism in the middle of the machine. More than 500 bolts can be tightened with one charge, and it can work continuously for 3 hours. The machine has no pollution to the environment and railway lines, low noise, large torque, small size, light weight, convenient up and down, fast tightening bolts, simple operation, and no harm to the health of the operators


BENEFITS

1.Multifunctional  2. Environmental protection  3. Light weight to carry


TECHNICAL DATA

Power

Lithium battery

Max. Torque

500 N.m

Bolt( Nut) specs

M22~M30

Tighten and loosen torque range

80-500 N.M

Lithium battery capacity

18.2 Ah

Motor no-load revolutions

1900 r/min

Number of impacts

1600 times /min

Nut sleeve size

M24 bolt/φ36 sleeve,


M30 bolt/φ46 sleeve.

Tightening torque adjustment range

80, 120, 150, 200, 250, 300, 350 N.m

Tightening torque accuracy

±10%

Unscrewing torque

500 N.m

Weight

6.9 kg


APPLICATION

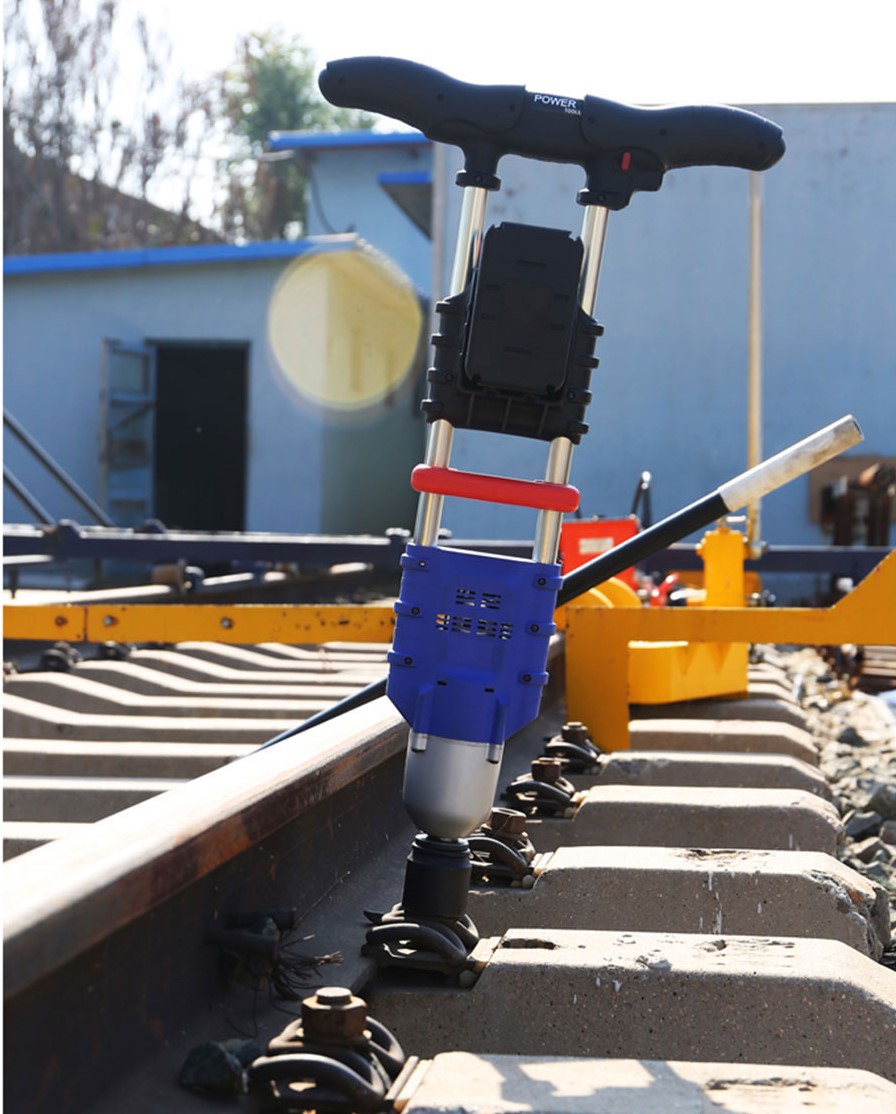

It is suitable for the tightening operation of ordinary sleeper vertical bolts, turnout sleeper vertical bolts, and high-speed railway sleeper plate vertical bolts
