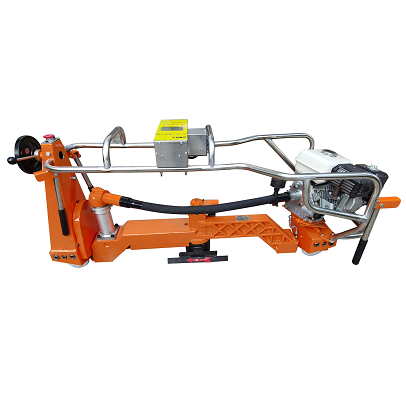

Internal Combustion Rail Profile Grinder/RailGrindingMachine

Internal Combustion Rail Profile Grinder/RailGrindingMachine 1. Easy operation 2. Digital display 3. High precision of grinding operation

Share

PRODUCT DESCRIPTION

This machine is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.

TECHNICAL DATA

Model

NGM-4.8

Engine

2 stroke petrol engine M165

Power

6.0kW

Grinding stone speed

≥3900r/min

Grinding stone inclination

0~90°

Grinding stone feeding stroke

42mm

Grinding stone specification

φ150xφ55x70mm

Fuel tank volume

4.5L

Profile wheel span

1000m

Feed adjustment accuracy

0.125m

Dimensions

1410*500*850mm

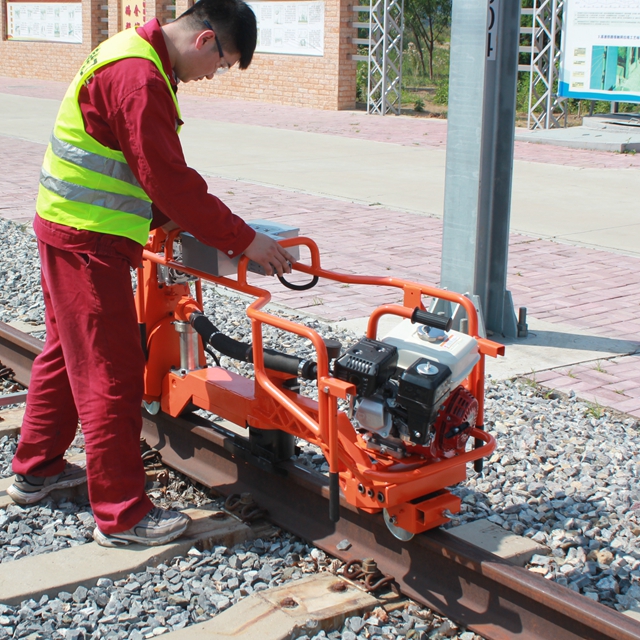

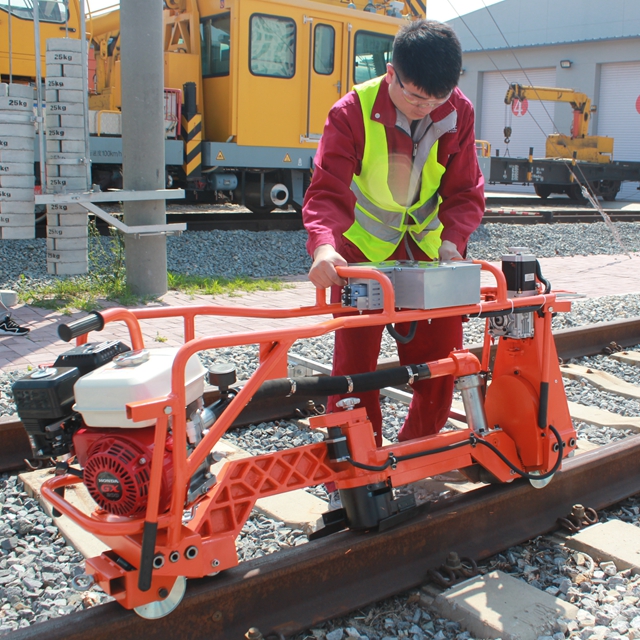

APPLICATION
