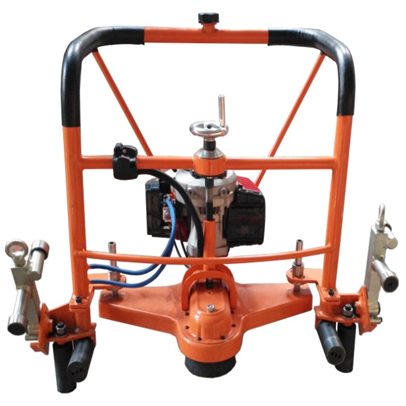

Multi-function rail portable grinding machine

1.Multifunctional 2.Portable use 3. Light weight to carry

Share

PRODUCT DESCRIPTION

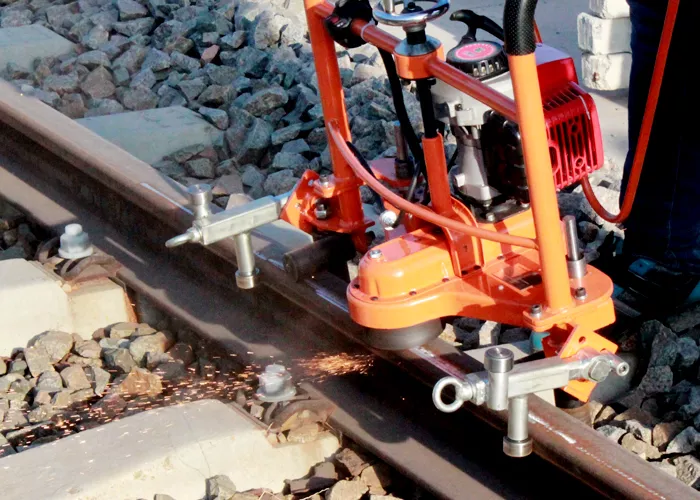

DGM-2.2 multifunctional rail switch grinding machine is suitable for eliminating or repairing rail damage in weak parts of

turnout. It mainly repairs the fat edge, profile and reduced value of switch rail, movable center rail and wing rail with the

section width below 50 mm, so as to slow down the development of rail surface defects, improve rail surface smoothness, and further improve wheel rail contact relationship and passenger riding comfort The purpose is to reduce the wheel rail noise, prolong the service life of rail and reduce the maintenance cost.

Under the impact force of high-speed and heavy haul trains, the rail of switch and frog often appears some diseases, such as falling block, fatigue crack, fat edge, poor wheel rail relationship, etc. due to contact fatigue, which leads to the decrease of rail life, the increase of maintenance workload and maintenance cost, and even seriously affects the traffic safety.

The purpose of the research and development of this project is: First, to improve the labor intensity, mainly for the repair of

the switch rail surface damage, the machine has high efficiency, light weight, safe, convenient and reliable up and down the road; Second, to save manpower, reduce maintenance costs; Third, to focus on improving the grinding accuracy of switch rail, repair the switch point (Center) rail profile, solve the uneven stress relationship between wheel and rail, and extend the service life of switch rail service life.


BENEFITS

1.Multifunctional  2.Portable use 3. Light weight to carry


TECHNICAL DATA

Power

2.2KW

Motor

60V

Shaft RPM

≥9000r/min

Grinding wheel

∮110×∮22×55mm

Linear speed

≥60m/s

Tipping load

60kN

Weight

20kg

Dimension

835×540×580mm

Power

2.2KW


APPLICATION

DGM-2.2 I multifunctional rail switch grinding machine is suitable for eliminating or repairing rail damage in weak parts of turnout. It mainly repairs the fat edge, profile and reduced value of switch rail, movable center rail and wing rail with the section width below 50 mm.
