Digital Rail Head Loss Wear Gauge

1.LCD digital display 2.Metric&Imperial unit 3.Customizable

Share

PRODUCT DESCRIPTION

Rail wear gauge(rail head loss gauge also call it rail profile gauge)is mainly used to measure the vertical wear and lateral wear of the rail.The reasonable design makes it light,convenient operation and intuitive reading .

BENEFITS

1. Digital type with direct readings

 LCD display screen, clear and readable; No calculations required,gives direct reading ; When reading, hold down the HOLD button to fix the measurement value and facilitate reading.

2. High measuring accuracy

The measurement accuracy is 0.01m

3. Easy to use, measure the vertical and lateral rail wear at the same time

Position the rail wear gauge on the outer side of the rail .
Push the vertical and lateral rail wear gauge so that the measuring probe is in contact with the upper surface and inner side of the rail respectively.Then the vertical and lateral wear of the rail can be read.

4. metric /imperial unit

5.Support customize

We could customize all kinds wear gauge according to different rail profiles and different measure points.

6.Fast calibrate

One-key zero clearing function, can be quickly calibrated before each use to reach the factory measurement accuracy.

7.Magnetic fixed part

Strong magnetic fixed part to attach to the rail.

8.Rail fillet as measuring base to ensure measure data more accuracy

Rail fillet is more clear than rail bottom,no dust. It could ensure the measure result reliability.

9.Portable Handle

This product is designed with a handle that is easy to hold, which greatly improves the portability of the product. It can avoid touching the ruler body directly, cause the ruler body to be stained and corroded, improve the product service life.

TECHNICAL DATA

Model

LJ-GM-A

Type

Digital

Vertical rail wear

0-15mm

Lateral  rail wear

0-25mm

Score value

0.01

Customize

yes


APPLICATION

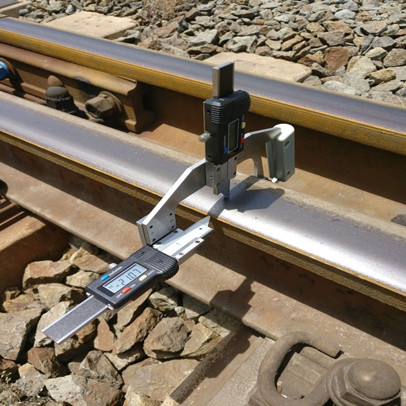

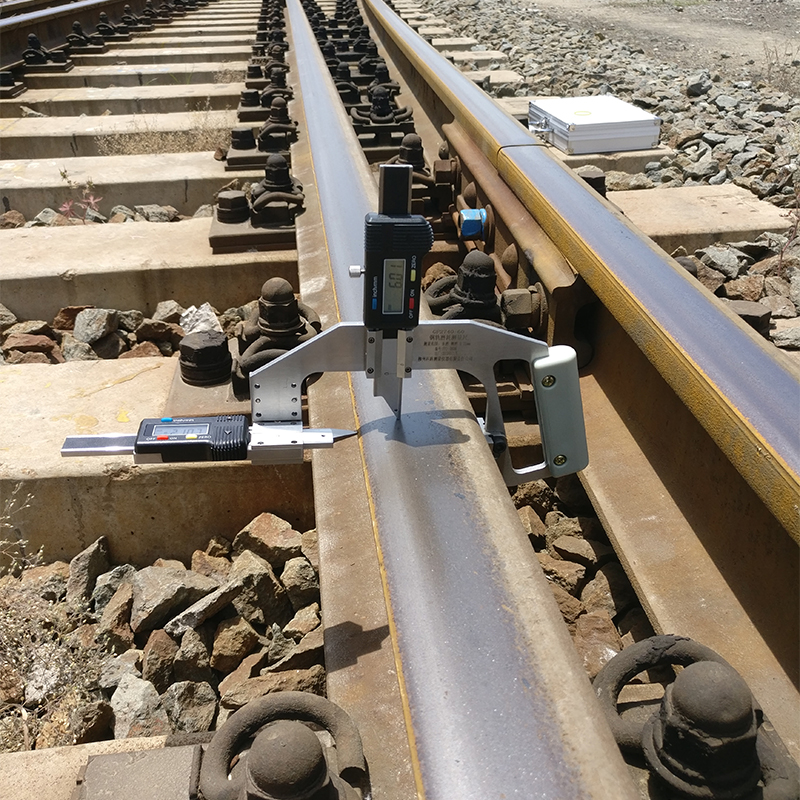

Digital rail wear gauge under working. Totally digital read could save more work time.

未标题-4 (1).jpg
