Portable Rolling Track Gauge

1.Lightweight 2.Reliable and easy to use 3.Data transfer by Bluetooth

Share

PRODUCT DESCRIPTION

The portable rolling track gauge is designed for measuring the track gauge and super-elevation.The lightweight ,reliable and easy to use device offers unique measurement accuracy.

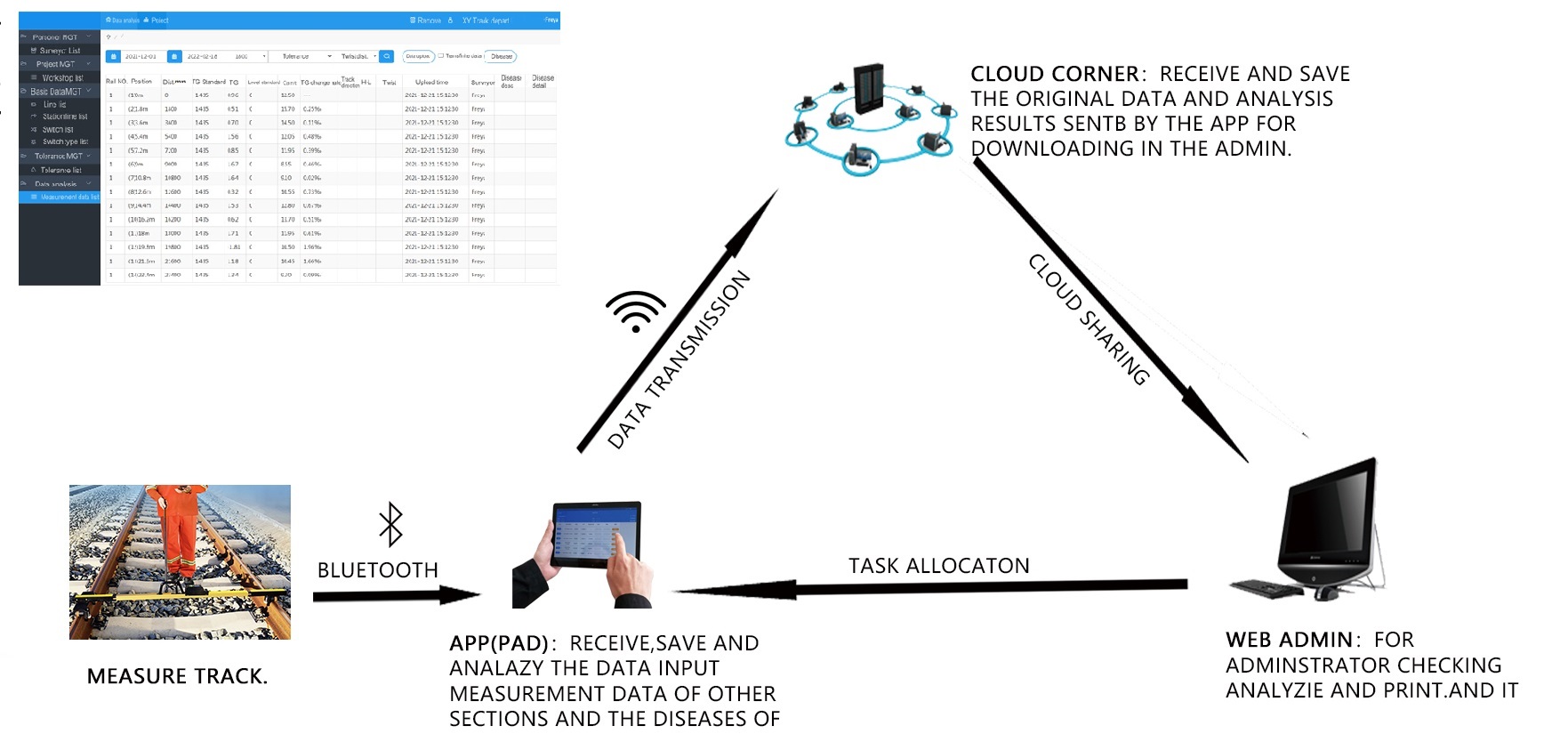

The software system support for storing and analyzing the measuring data. It can be used for track inspection and rail maintenace. It is easy to carry, and night-time and tunnelwork, legible even in direct sunlight are supported which is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying .

BENEFITS

The lightweight ,reliable and easy to use device offers unique measurement accuracy.  It is easy to carry, and night-time and tunnel work.

TECHNICAL DATA

Model (1435mm)

GJC-JJG0

Track gauge(mm)

1410-1470

Superelevation measuring range

-185~+185

Display mode

OLED display and hand-held terminal display

Supply Voltage

DC3.4V~5.2V (rechargeable battery)

Superelevation division value

0.05

Working temperature

-30℃~+55℃

Insulation performance

>1MΩ

Track gauge division value

0.01mm

Superelevation division value

0.05mm

Track gauge max indication error

≤±0.25mm

Superelevation max indication error

≤±0.3mm

Length

<1700mm

Net Weight

≥6.5kg

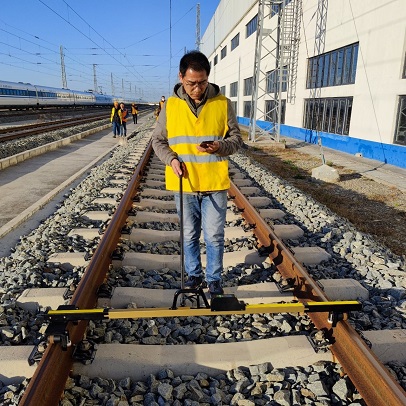

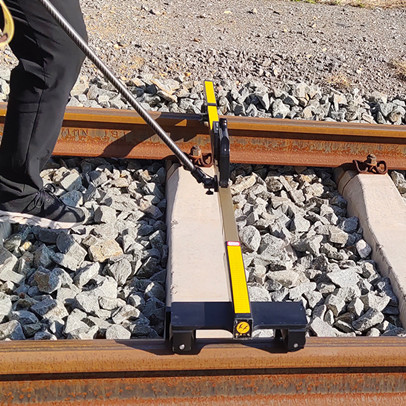

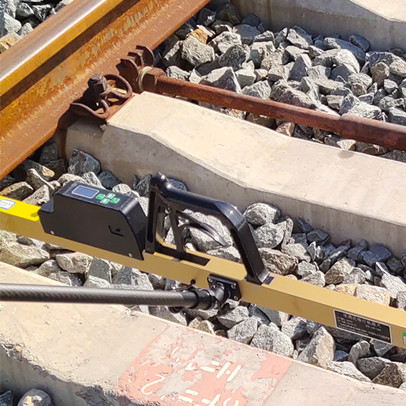

APPLICATION
