Flexible Shaft Tamping Machine

1. Light Weight 2. Easy Operation 3. Strong Applicability for Both Main Line and Turnout 4. Fast Speed

Share

PRODUCT DESCRIPTION

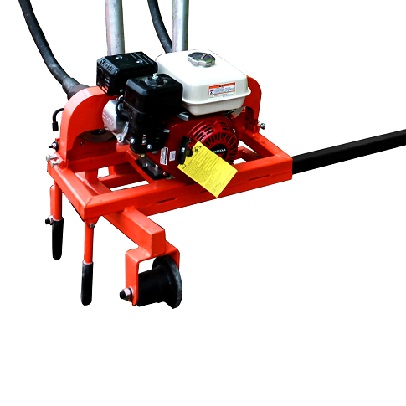

ND-4.2*2 Internal combustion flexible shaft tamping machine is suitable for tamping operation of any rail-type railway line maintenance ballast. Its features are light weight and easy to operate. Tamping are of good quality and low failure rate and easy maintenance, the speed is fast, and the applicability is strong. Not only can be used for main line, but also the turnout, very suitable for railway ballast tamping operation needs.

BENEFITS

This machine's characteristic is light weight and easy to operate. Tamping are of good quality and low failure rate and easy maintenance, the speed is fast, and the applicability is strong.

TECHNICAL DATA

Model

ND-4.2*2

Product name

One Drag Two Soft Shaft Tamping Machine

Gasoline engine model

Air-cooled 4 stroke(s)

Material

Stainless steel

Dimensions (L*W*H) (mm)

800*750*850mm

Output power

4.0KW/3600rpm

Torque

8.6N.m/2500rpm

Vibration frequency

150Hz

Amplitude

1.25mm

Excitation force

4.2KN*2

Production efficiency

200-260 piece / group per hour

Vibrator diameter

50mm

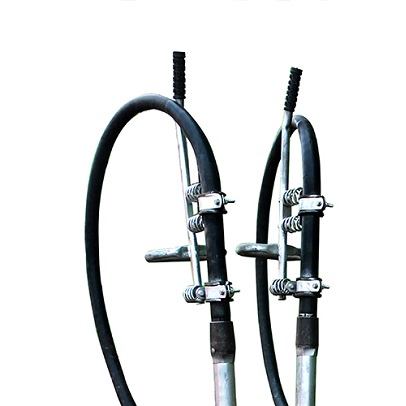

Flexible shaft diameter

13mm

Flexible tube

36/46mm

Weight

≤82kg

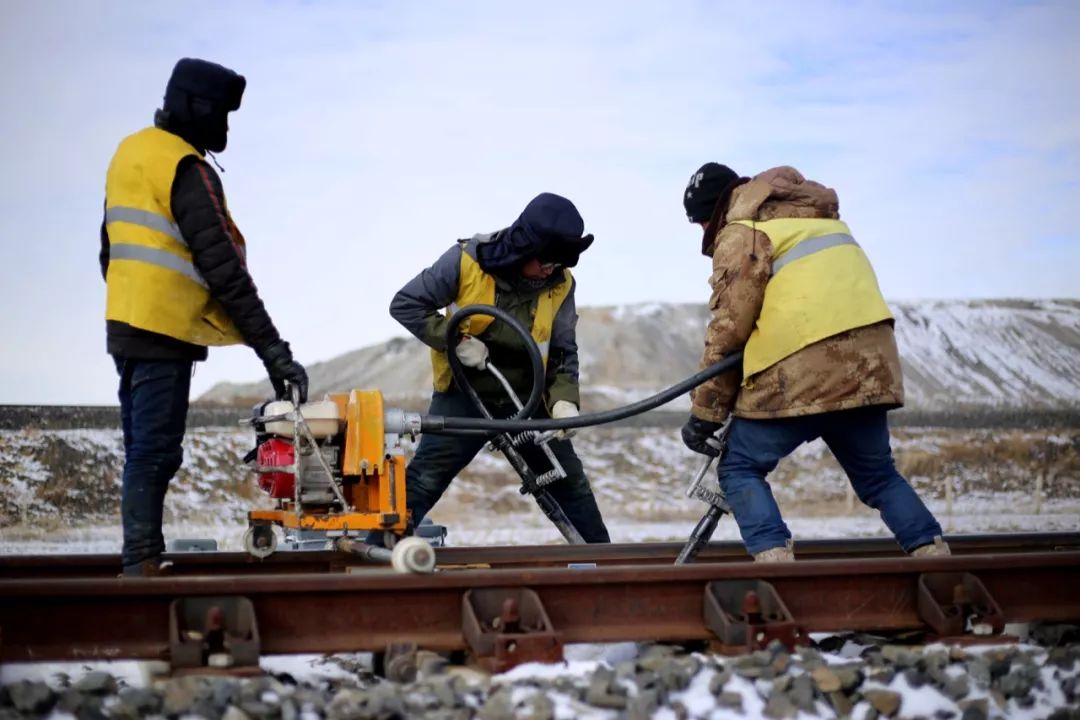

APPLICATION
