PRODUCT DESCRIPTION

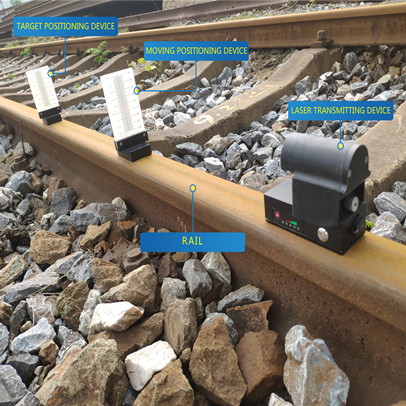

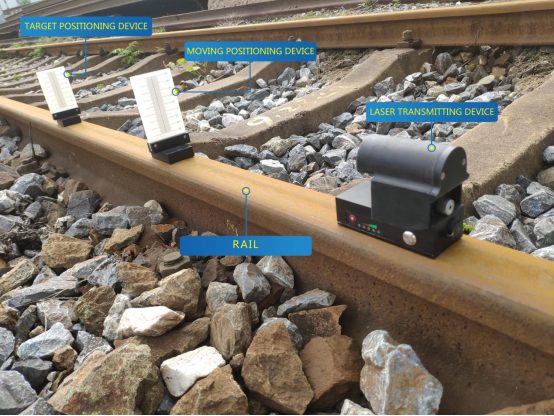

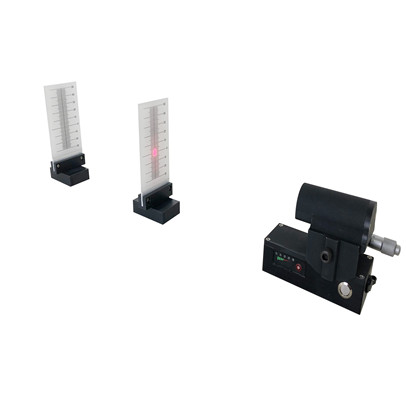

Laser Alignment Device is used for measuring track level and line to aid track measurement and hand tamping operations. It can measure the Horizontal and the Vertical . It is mainly composed of laser transmitting device,target positioning device and moving positioning target device .
BENEFITS
1.Quick Installation
The operator can put this device on the track in seconds
2.Saving money in repeat work and accuracy
30m at a time with 100% reduction on repeat works and rapid deployment

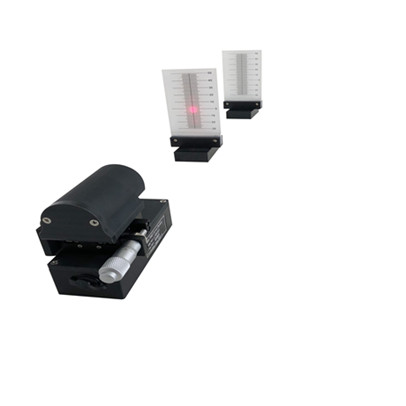

3. Vernier adjustment knob ensuring accurate readings
The vernier adjustment knob assist the operator to ensure a perfect horizontal position ensuring accurate reading .
4. Stored in a dedicated protective case ,Easy to carry
TECHNICAL DATA
Laser measure distance | 30m | |
Lser center spot | ﹤10mm（30m distancearea） | |
Point range | horizontal | （-30～+60）mm |
vertical | （-30～+60）mm | |
target positioning device and moving positioning target device resolution | 2mm | |
1 Battery capacity (laser transmitter) | Continuous use for 4 hours | |
APPLICATION
Measure the Horizontal and the Vertical Of Rail

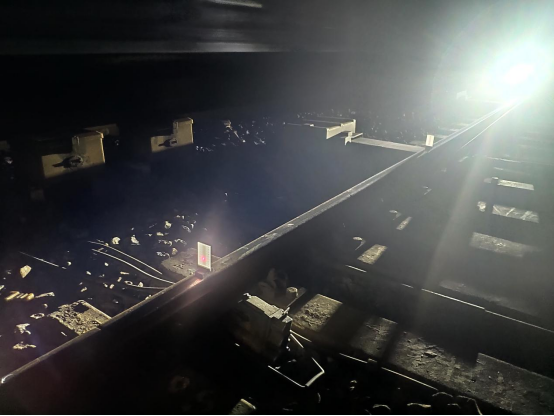

Night-use
