Home>>Products>>Rail Machine>>Rail Bolt Wrench

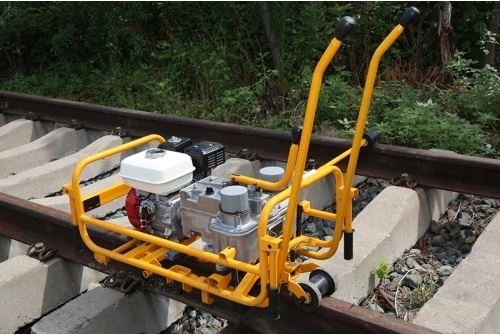

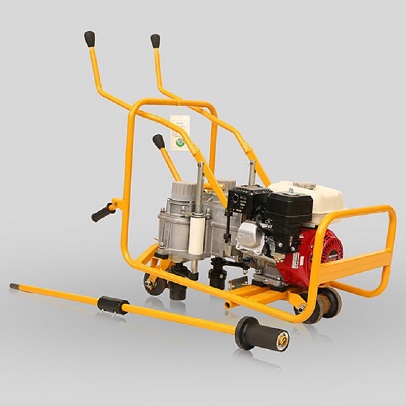

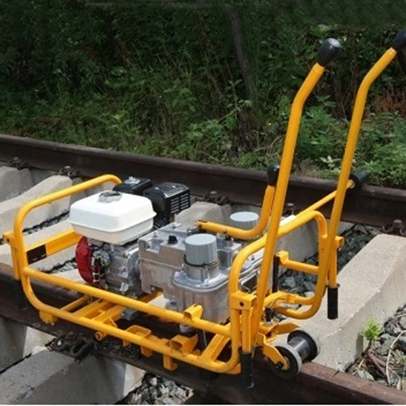

Double Sockets Petrol Engine Rail Bolt Wrench

1. Small size and light weight 2. Easy operation 3. High cutting end face quality 4. Fast cutting speed

Share

PRODUCT DESCRIPTION

The machine is powered by Honda GX270 single-cylinder air-cooled four-stroke petrol engine, which has the characteristics of fast cutting speed, high cutting end face quality, convenient operation, small size and light weight. It is suitable for various rails of 43~75kg/m.

TECHNICAL DATA

Model No.NLB-650
Engine

GX160 petrol engine 3.05 kW

Number of revolutions

1800 r/min

No. of sockets

2 pcs

Socket maximum rotation speed

105~110 r/min

Sockets center distance

214±0.5 mm

Socket lifting stroke

65~70 mm

Adjustable troque while screwing

80~180 N.m

Max.unscrewing torque

650 N.m

Working efficiency

≤5s/nut

Dimensions980*470x 700 mm
Weight95 kg

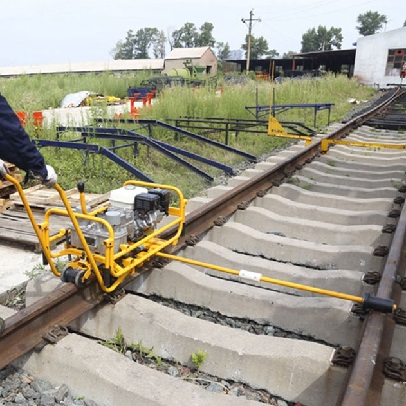

APPLICATION
