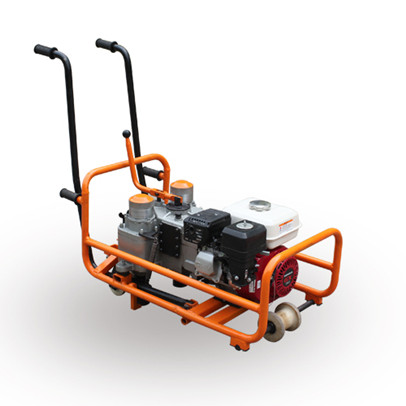

NLB-600 Railway torque impact wrench
High work efficiency ; Reversing agile, centralized control, convenient operation
PRODUCT DESCRIPTION

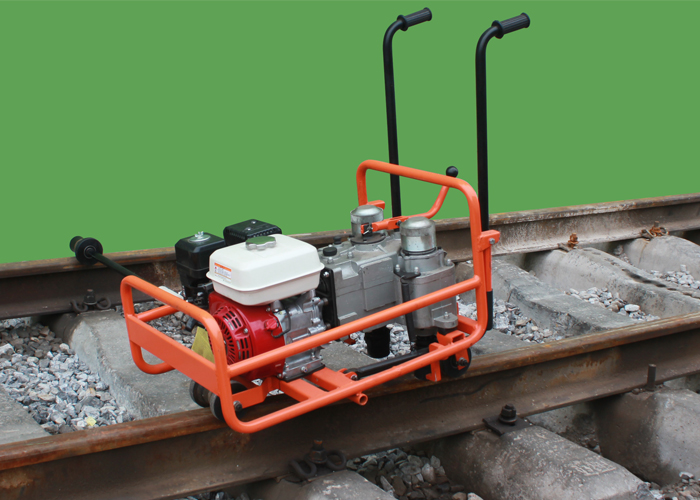

NLB - 600 type internal combustion bolt wrench is suitable for railway line sleeper bolt and nut of unscrew and fastening operation. This machine is double sleeve and homework, reverse torque large in 600 n m., can unscrew various corrosion bolt, the working efficiency is high. At the same time change impact torque for static torque, make the operation of rail fastener pressure error is small; Reversing agile, centralized control, convenient operation, it is a lot of multifarious pine,bolt operation indispensable necessary equipment.
TECHNICAL DATA
| Model No. | NLB-600 |
| Engine | Honda GX160H1 |
| Gasoline engine rated power | 4kw |
| Gasoline engine speed | 1800r/min |
| Spindle speed | 122r/min |
| Number of sleeves | 2 |
| Sleeve center distance | 234±0.5mm |
| Adjustable tightening torque | 80-200 N m |
| Maximum loosening torque | ≥600N•m |
| Factory tightening torque | 180 N•m |
| Working efficiency | ≥10 pieces/min |
| Dimensions | 900×500×1025(mm) |
| Weight | 90kg |
