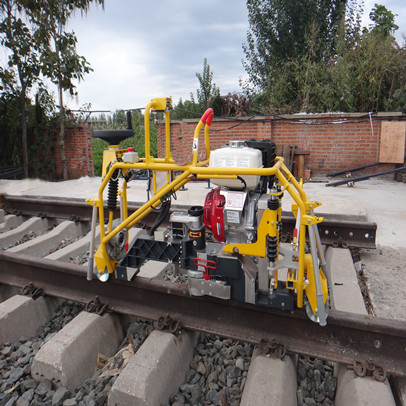

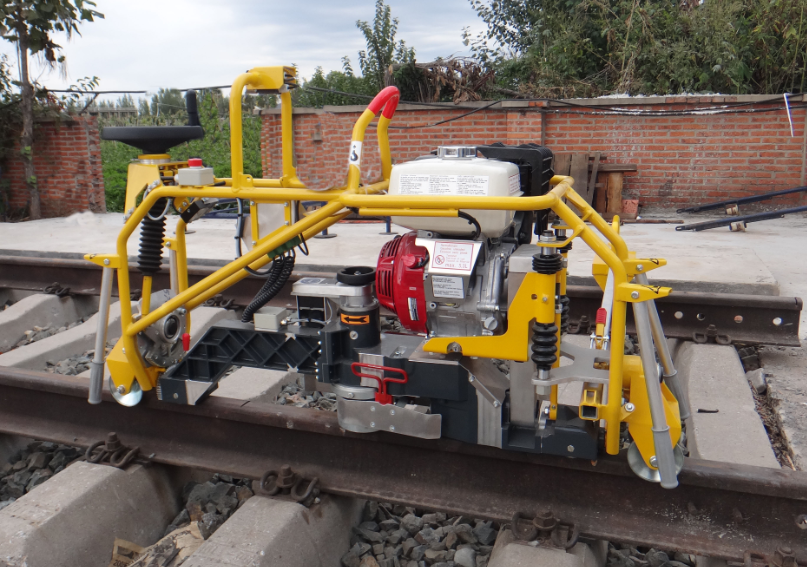

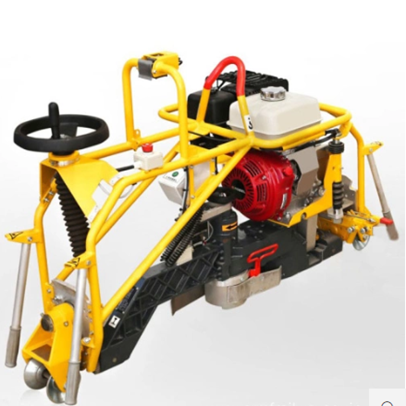

NGM-5.1 CNC Control Rail Profile Grinding Machine
Equipped with spark protection device； Equipped with electric control system prevents over grinding ；Grinds the whole head of rail in one single operator
PRODUCT DESCRIPTION
NGM-5.1 CNC Control Rail Profile Grinding Machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs. The development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly improve the profiling accuracy and polishing efficiency.
TECHNICAL DATA
| Engine | HONDA GX270 |
| Power | 5.1 kW |
| Grinding wheel specifications | φ125x65 mm |
| Feeding accuracy | 0.1 mm |
| Turning angle of grinding stone | ±90° |
| Spindle revolution | 4100r/min |
| Grinding stone feeding stroke | 42 mm |
| Profile wheel span | 1000 mm |
| Dimensions | 1450x550x900mm |
| Weight | 100 kg |
| Weight of supporting rod | 14 kg |
