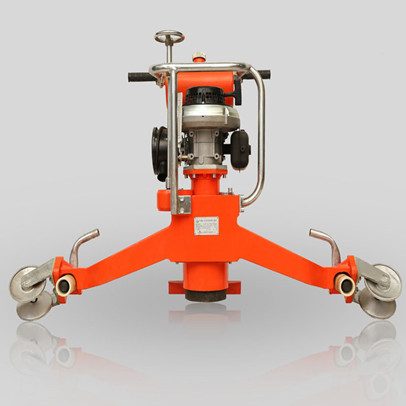

NGM-6.0 Rail profile grinder
M165 two-stroke petrol engine imported from Spain;Special diaphragm carburetor;Stable output torque ;Easy operate
PRODUCT DESCRIPTION
NGM-6.0 Rail profile grinder is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
TECHNICAL DATA
Engine | 2 stroke petrol engine M165 |
Power | 6.0kW |
Grinding stone speed | ≥3900r/min |
Grinding stone inclination | 0~90° |
Grinding stone feeding stroke | 42mm |
Grinding stone specification | φ150xφ55x70mm |
Fuel tank volume | 4.5L |
Profile wheel span | 1000mm |
Feed adjustment accuracy | 0.125mm |
Dimensions | 1410x500x850mm |
Weight | 60kg |
APPLICATION
